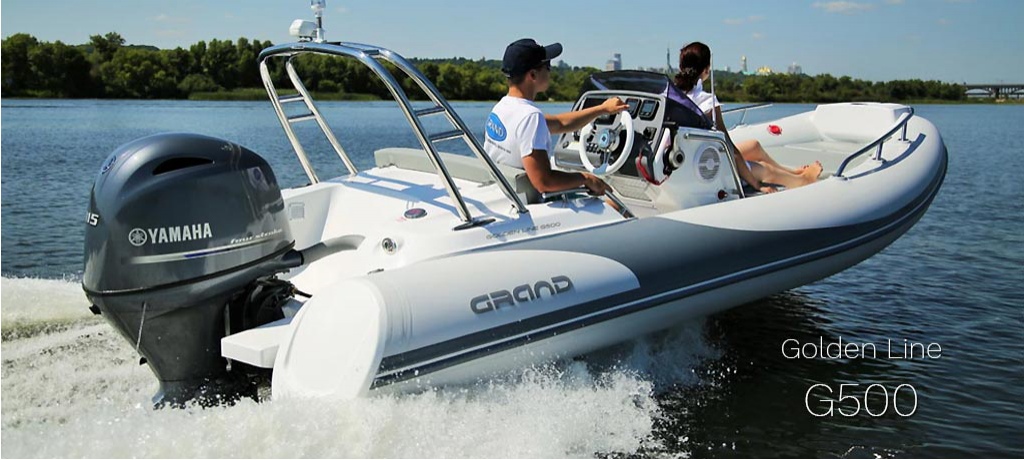

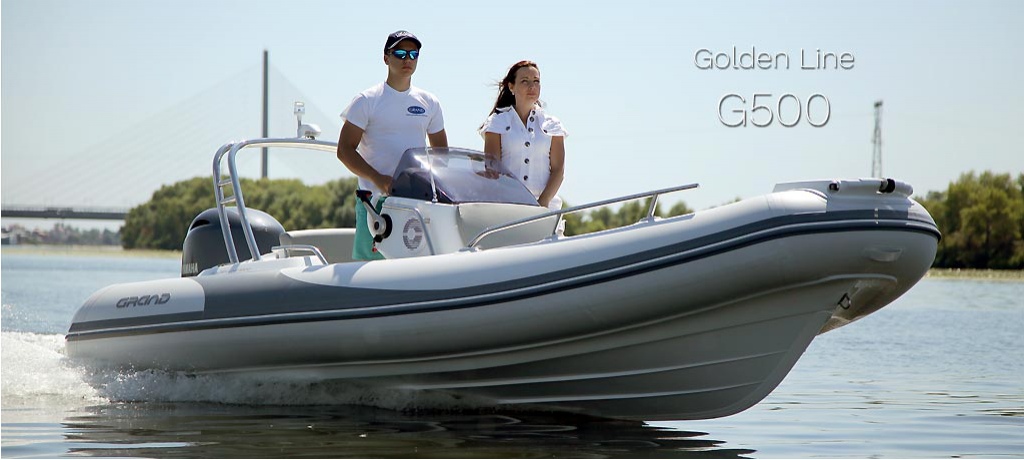

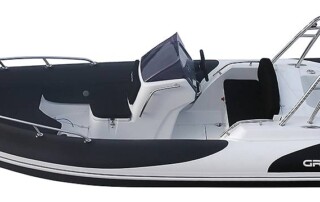

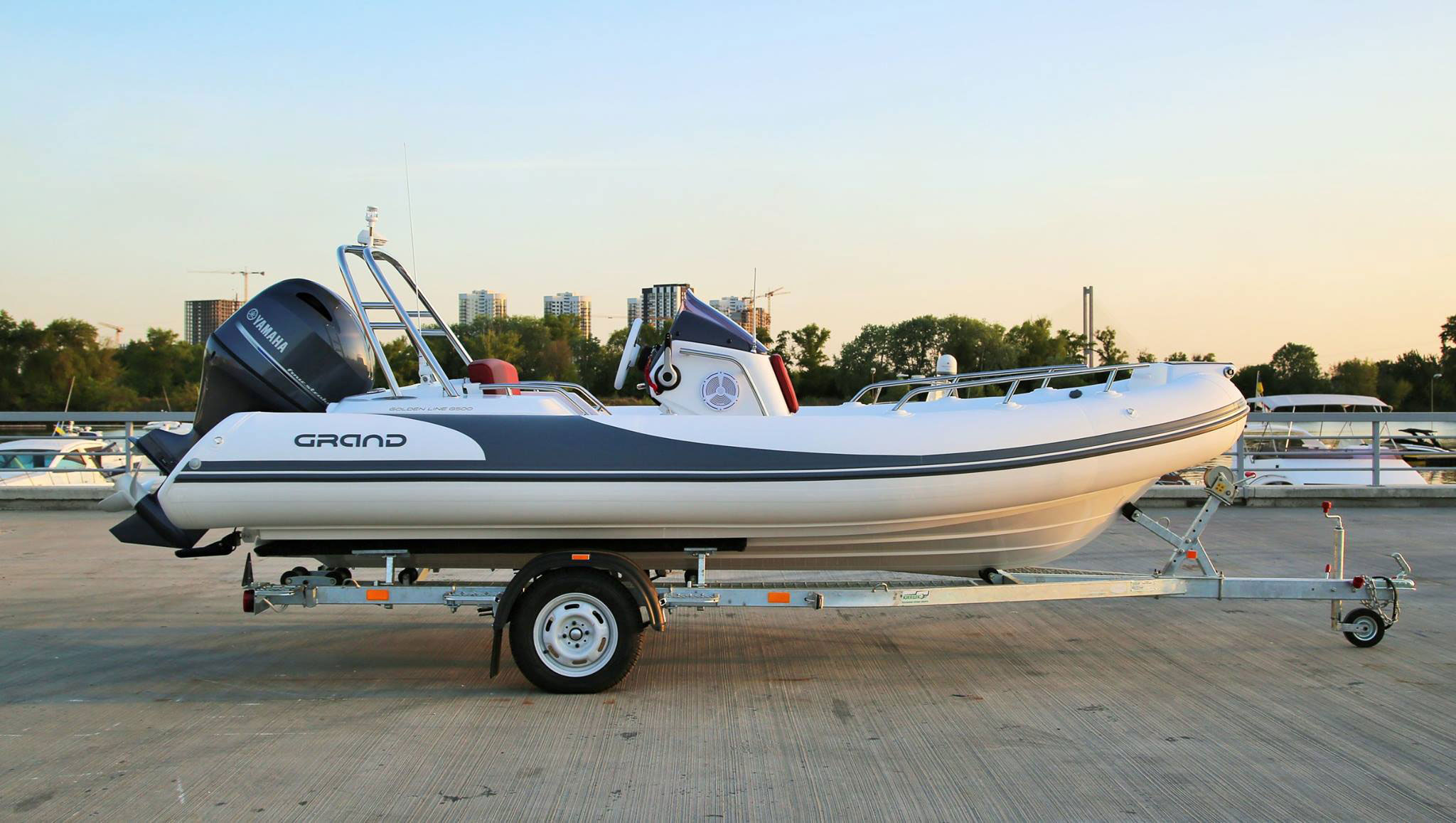

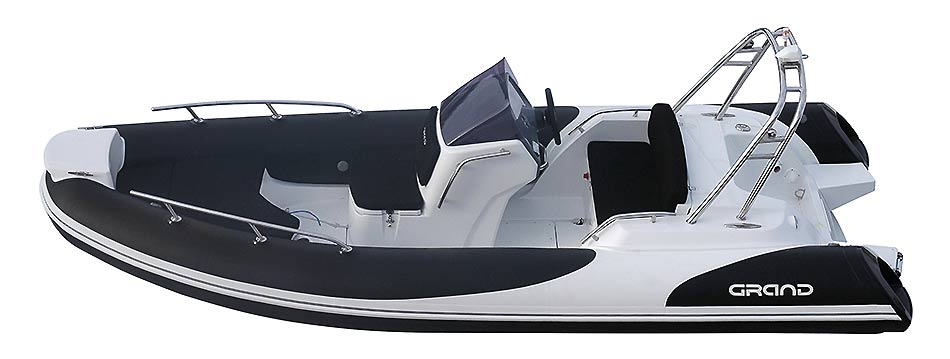

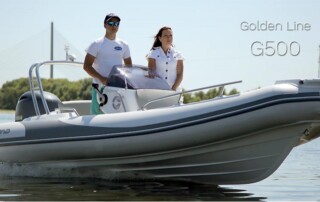

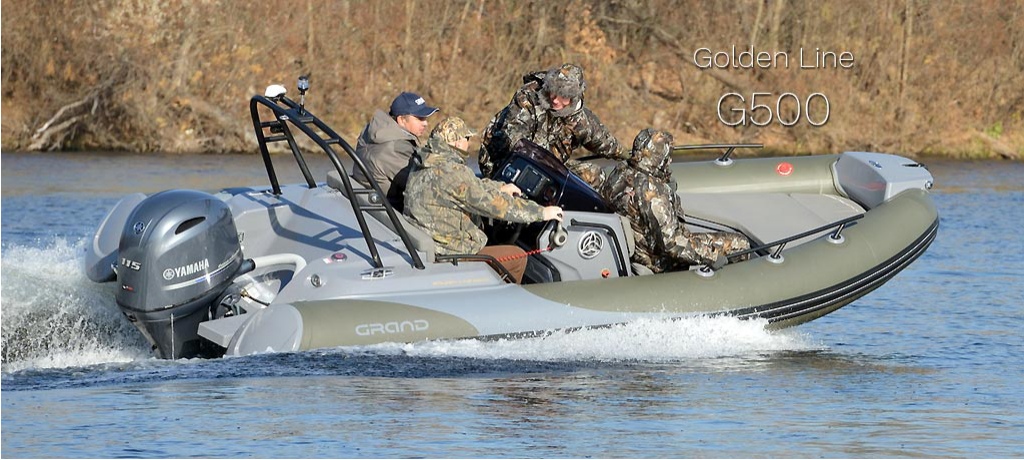

Golden Line G500
G500LF
16’3″ long, 90HP max

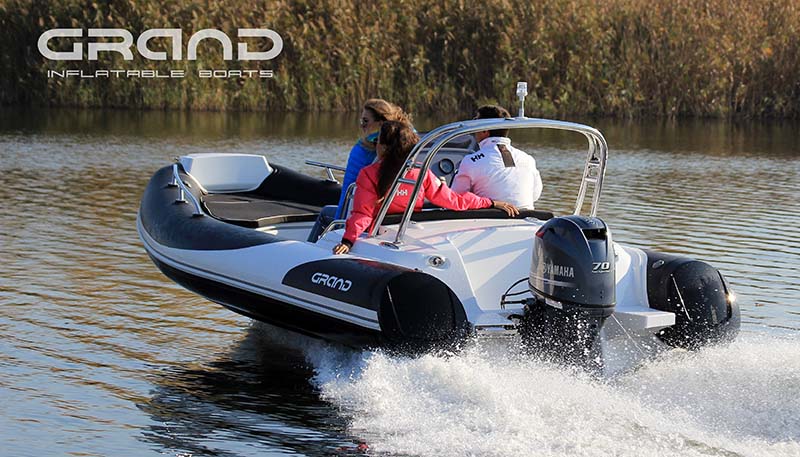

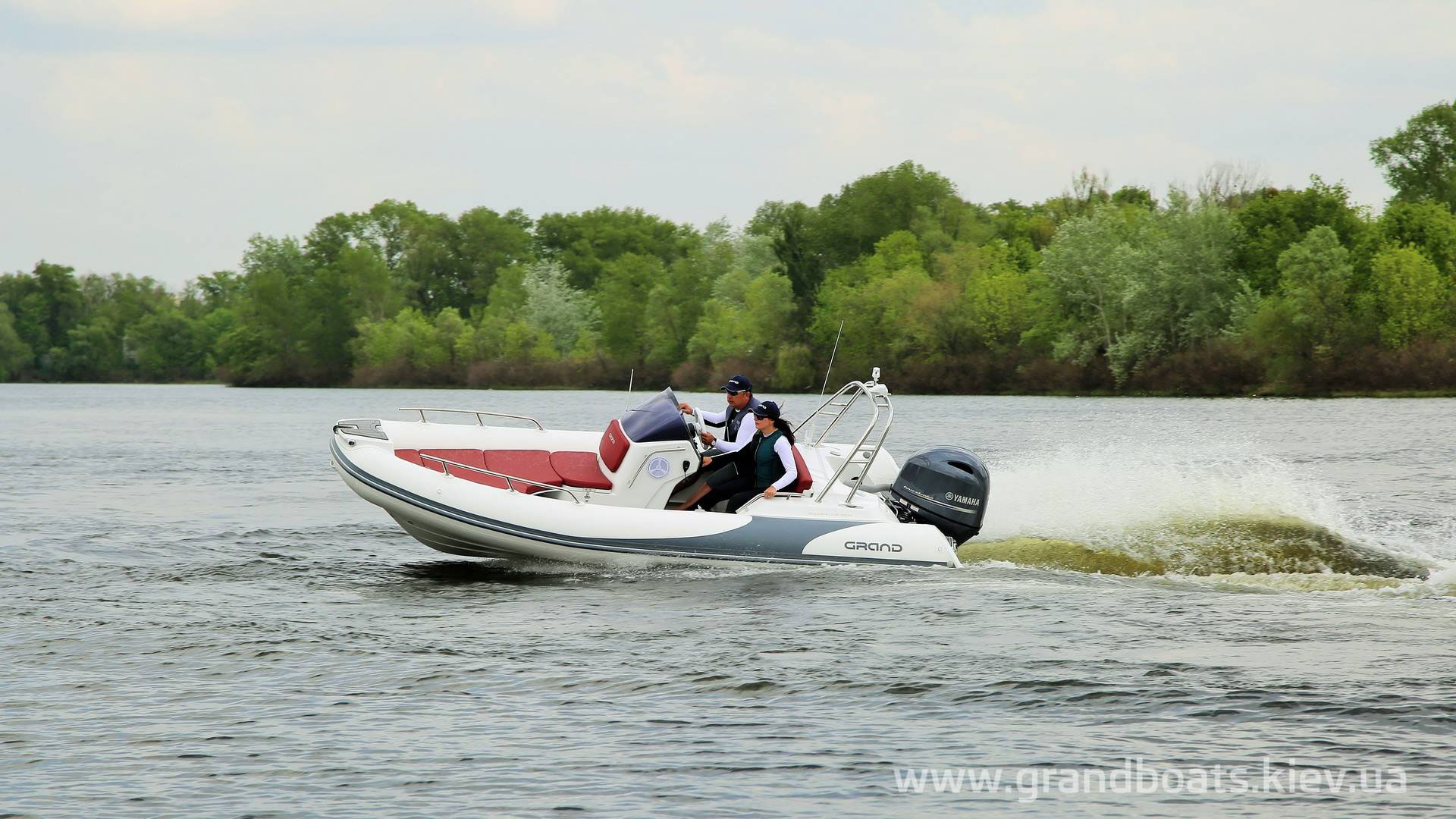

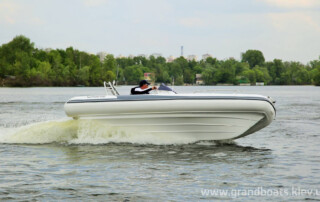

The Golden Line G500 is an absolutely fresh idea of our designer’s team. A brand new model is high-powered, great at riding the waves out at sea and delivering the thrills and spills of water sports, whether it’s water-skiing or wakeboarding, keeping up with the fish or simply enjoying the excitement of speed over water. It is one of the safest and worthy boats on the water with its light-weight, high-performance and high-capacity structure with a heavy-duty, Deep-V handlaid hull and an elegance tube with unique GRP step ends.
The Golden Line G500 has sporty look, and impress with it’s seaworthiness. The driver’s position is perfectly designed for driving while the rest of the cockpit meets the expectations of comfort for the passengers. A completely new, innovative hull with a great potential makes you enjoy handling the boat, and the effective construction provides a low consumption.
The boat is available with PVC or HYPALON tubes.
VIDEO

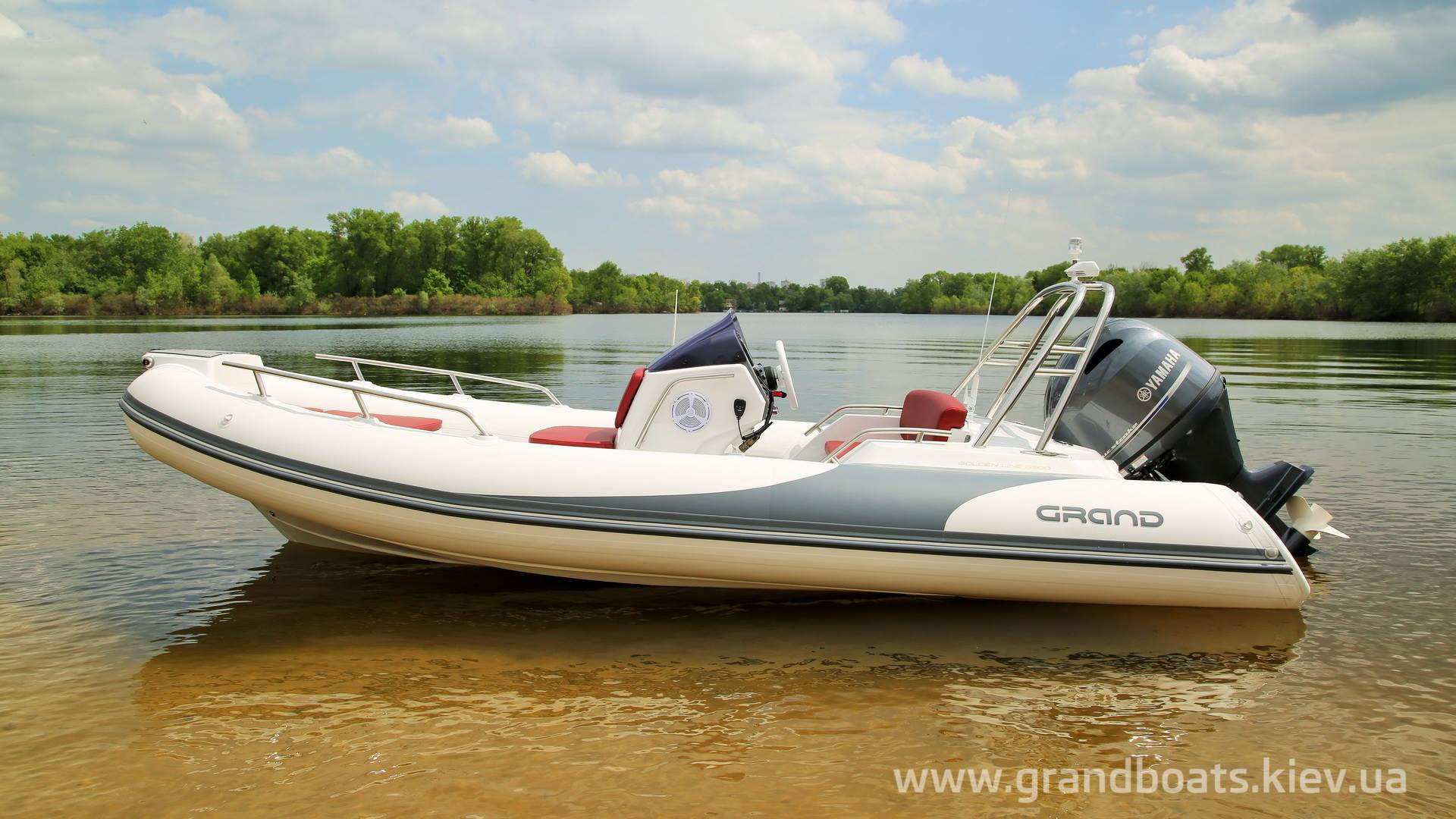

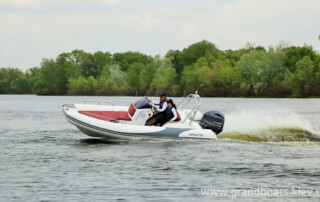

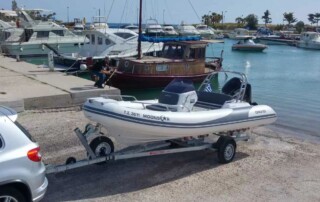

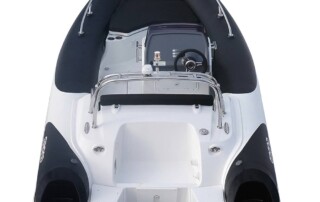

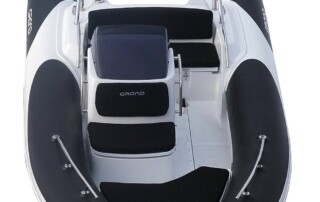

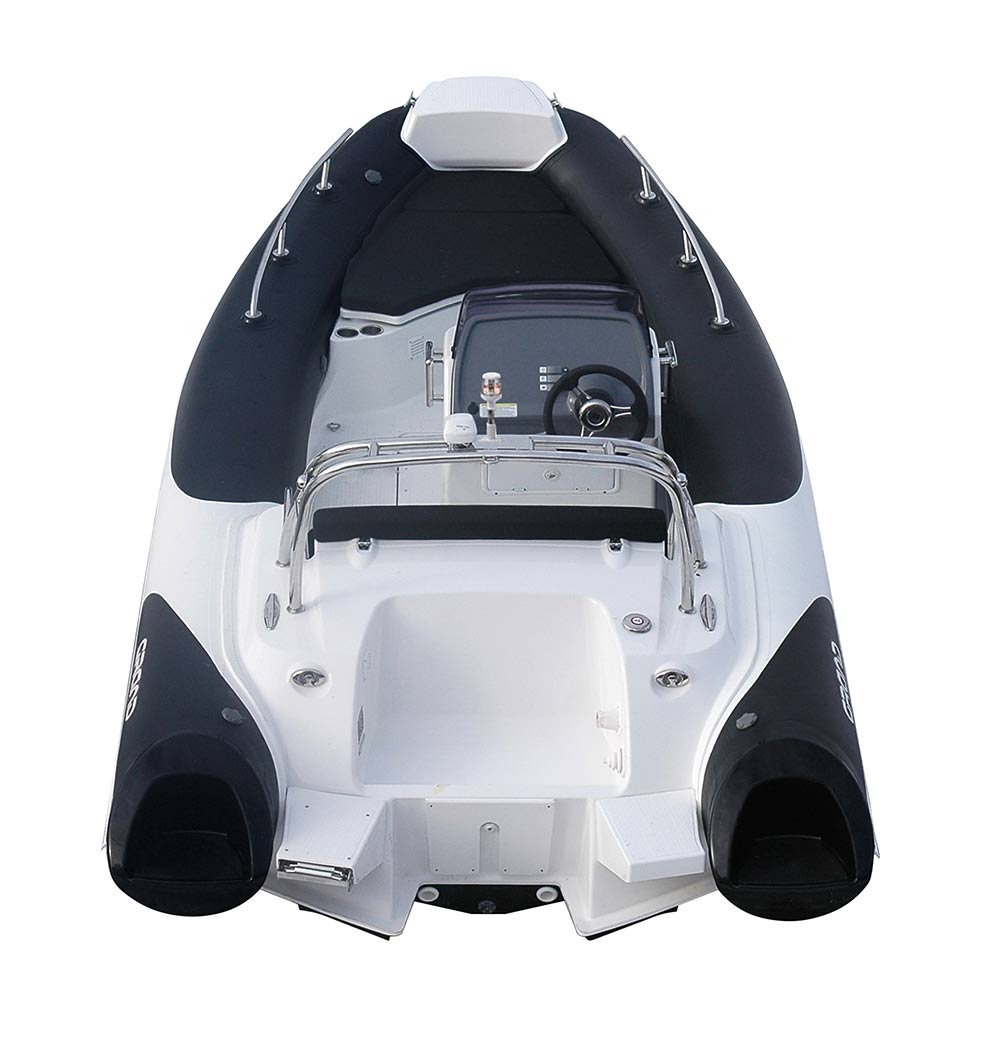

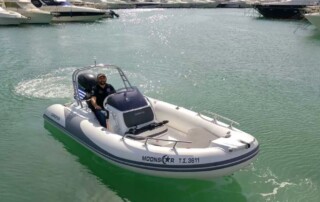

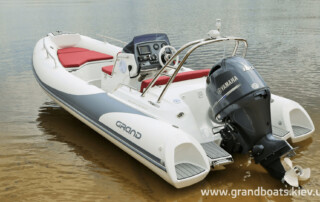

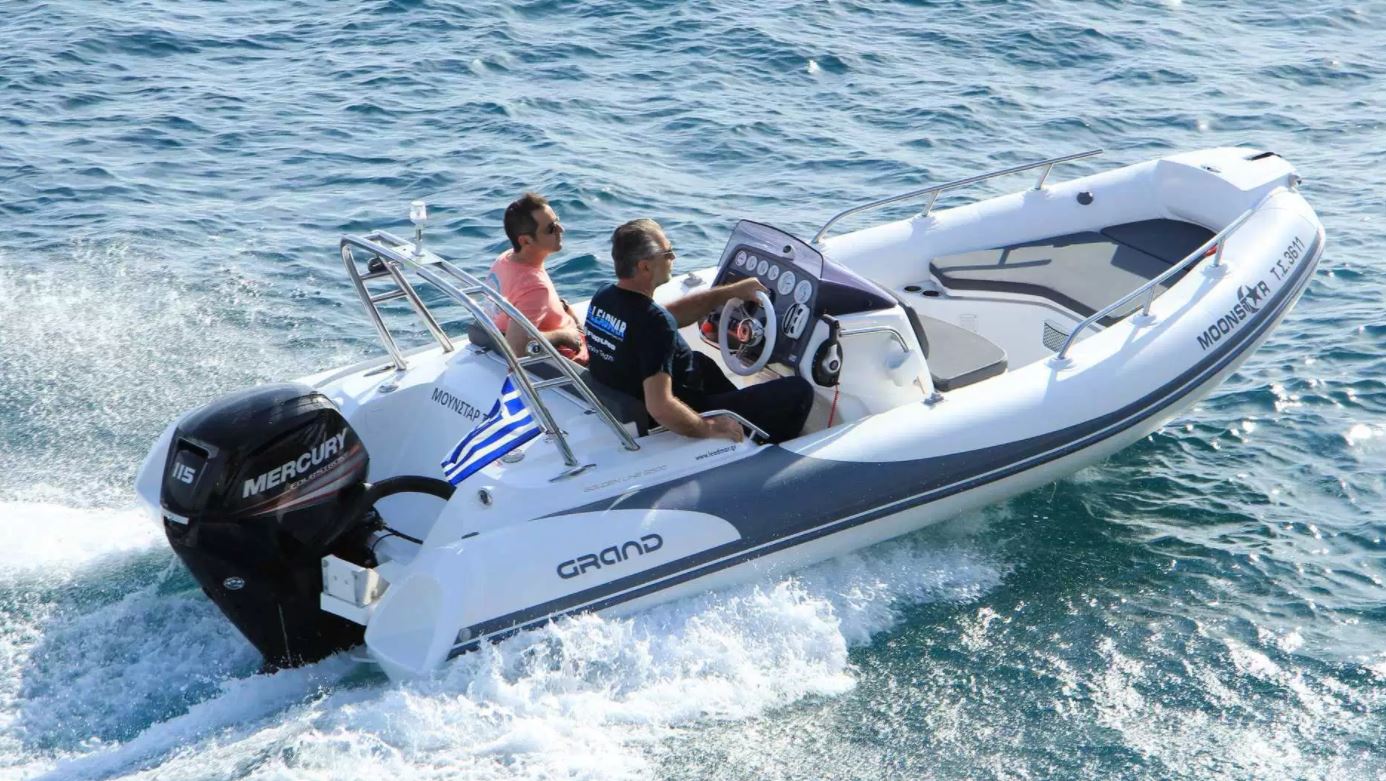

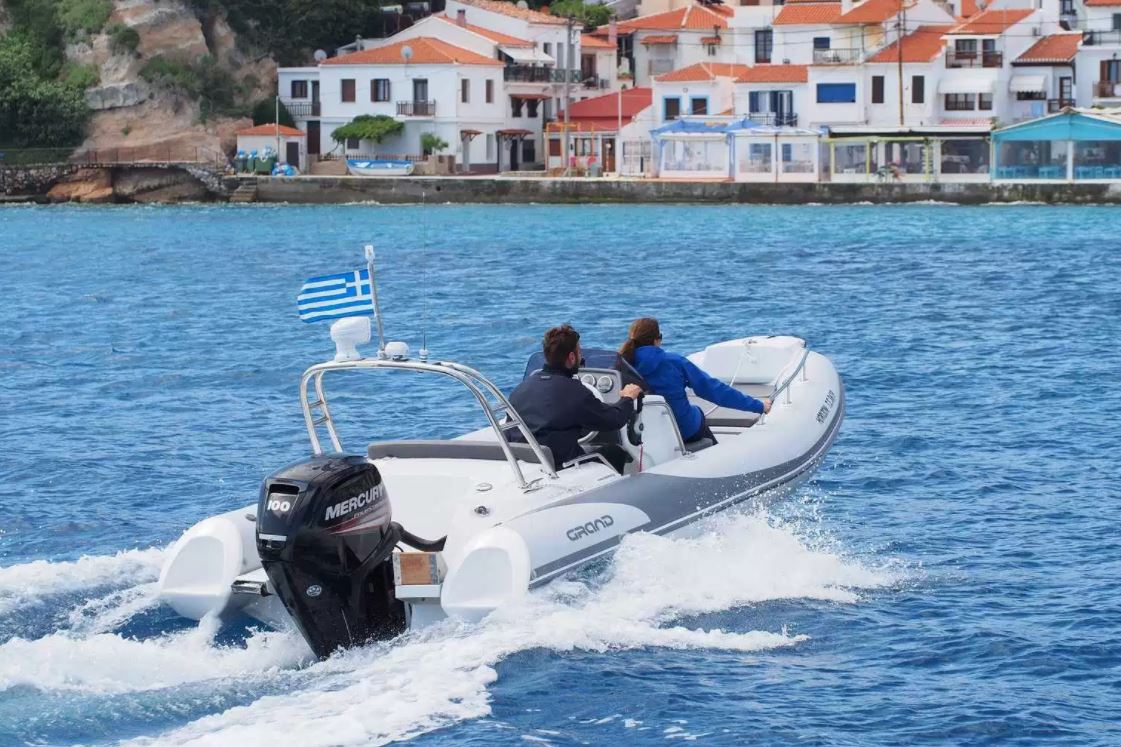

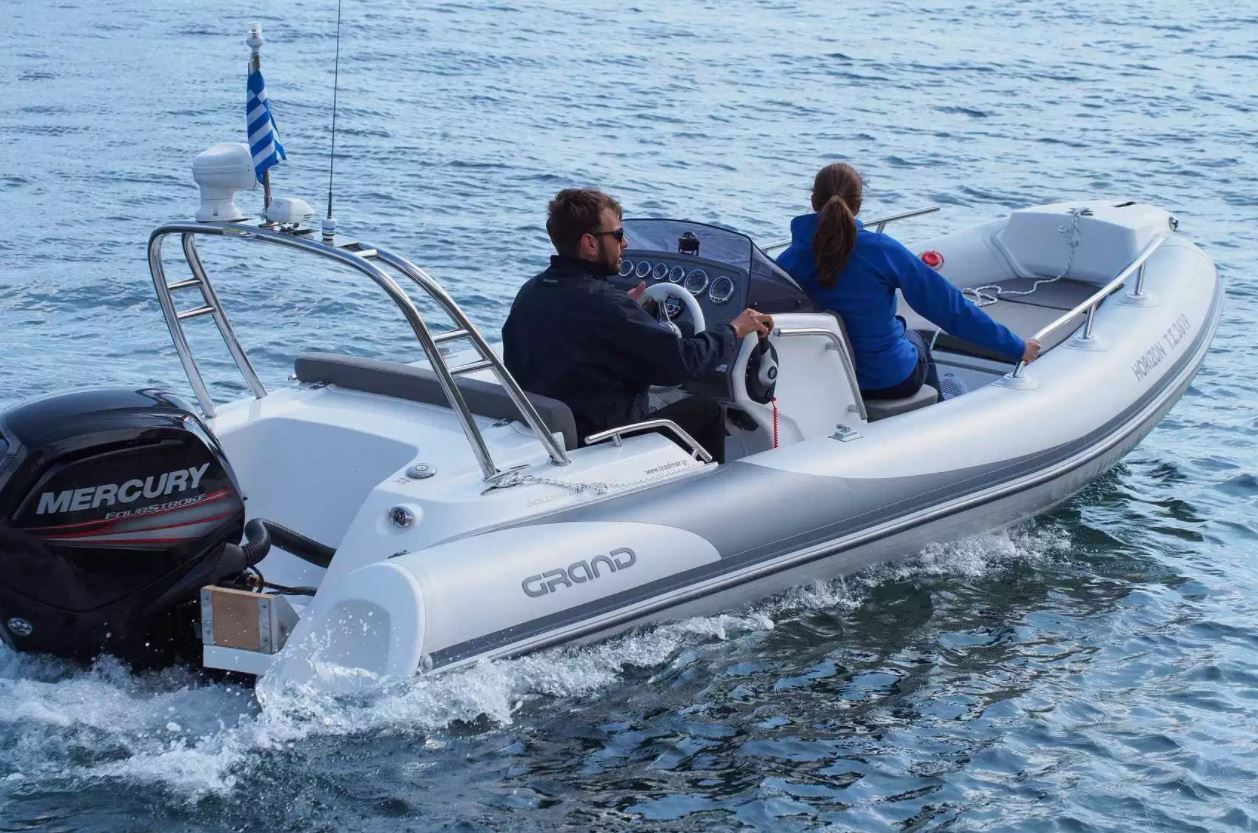

GALLERY
Features
STANDARD FEATURES FOR DELUXE VERSION:
- Deep-V fiberglass hull with transom extensions, bow towing eye and self-bailing cockpit
- 5-chamber inflatable tube with fiberglass step ends and overpressure valve

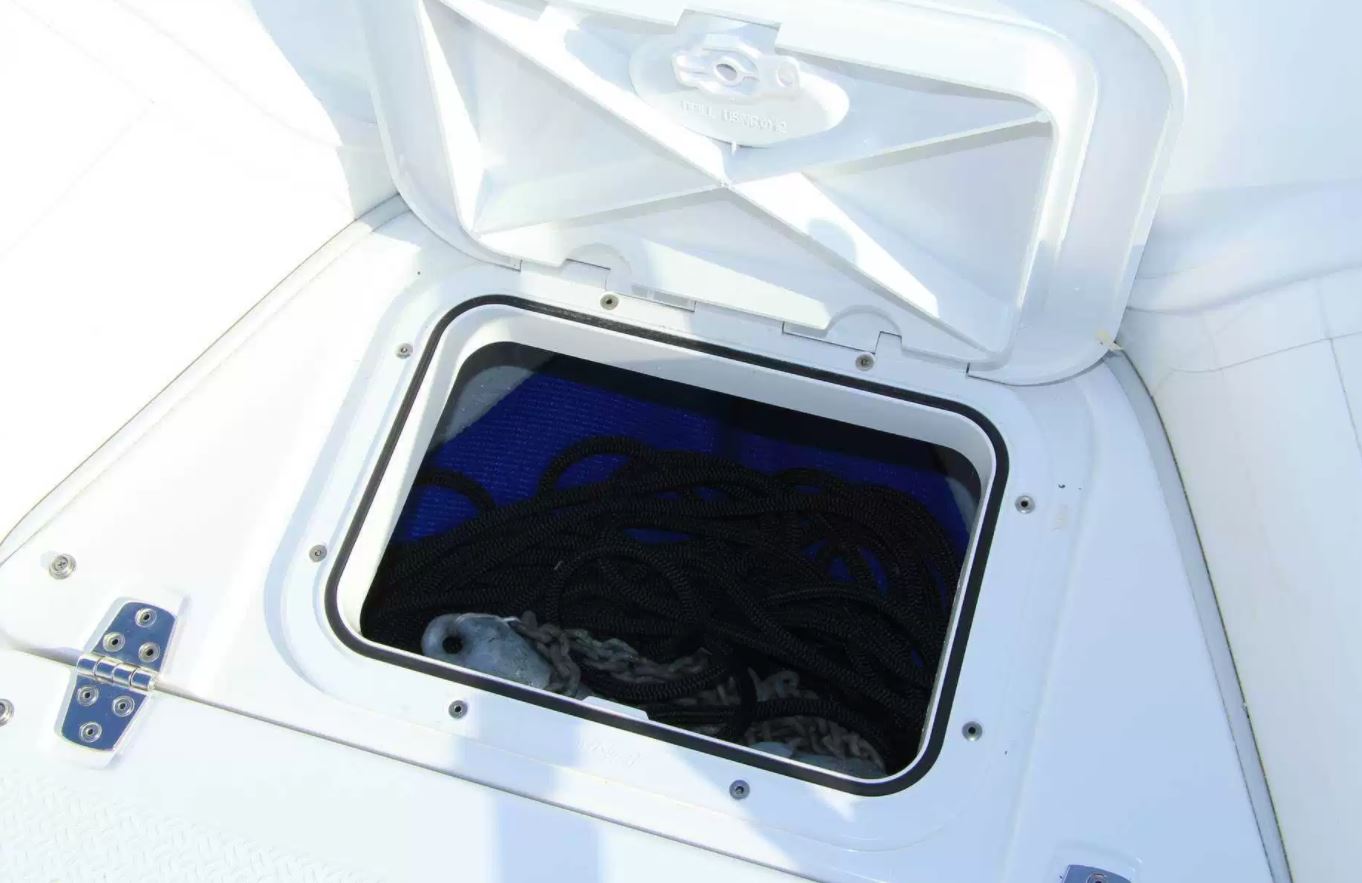

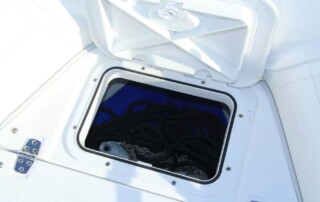

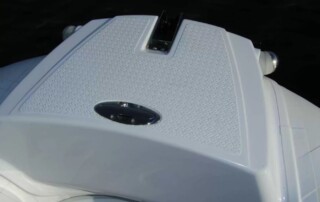

- Bow anchor compartment with hatch and soft cushion

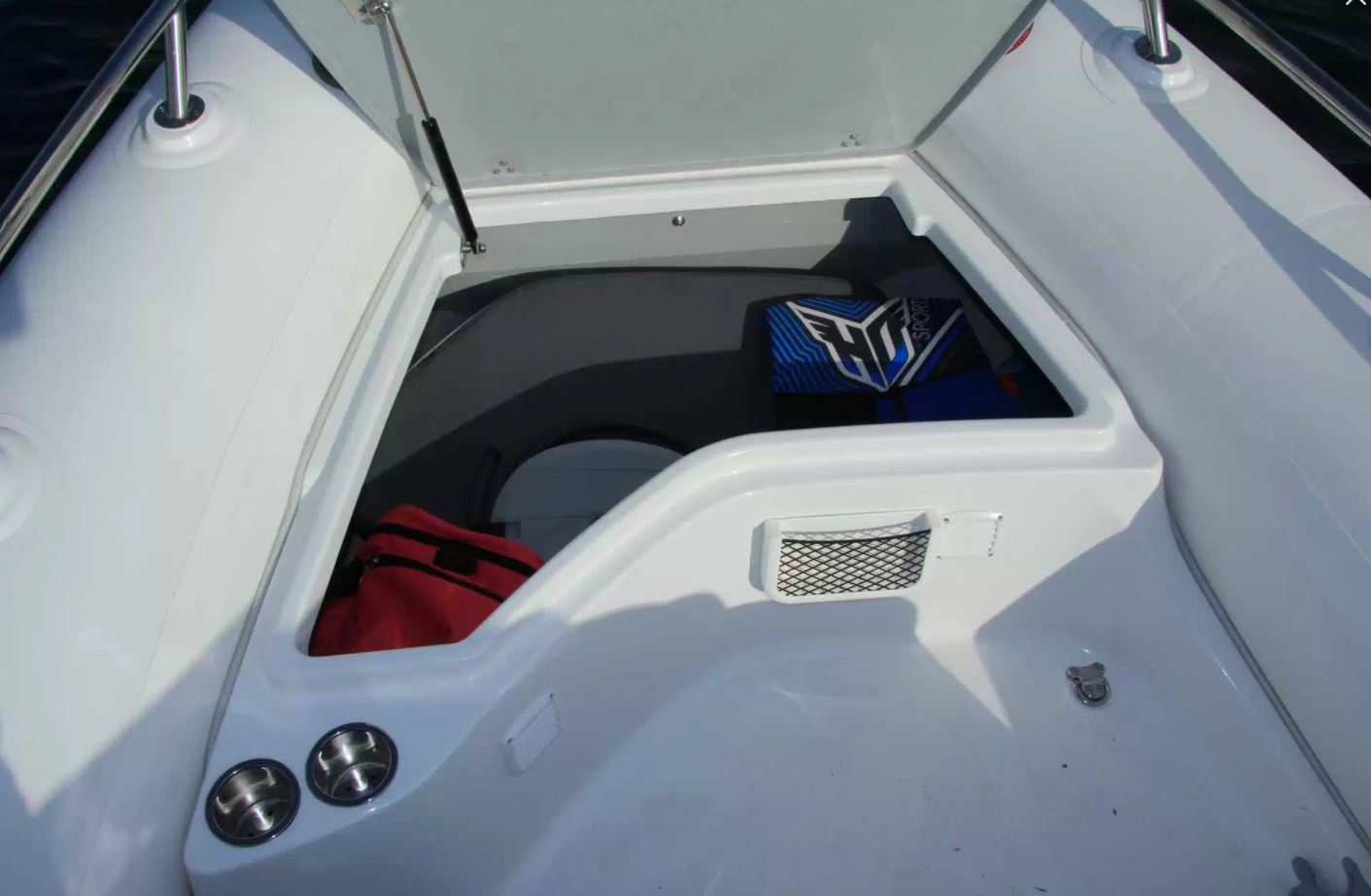

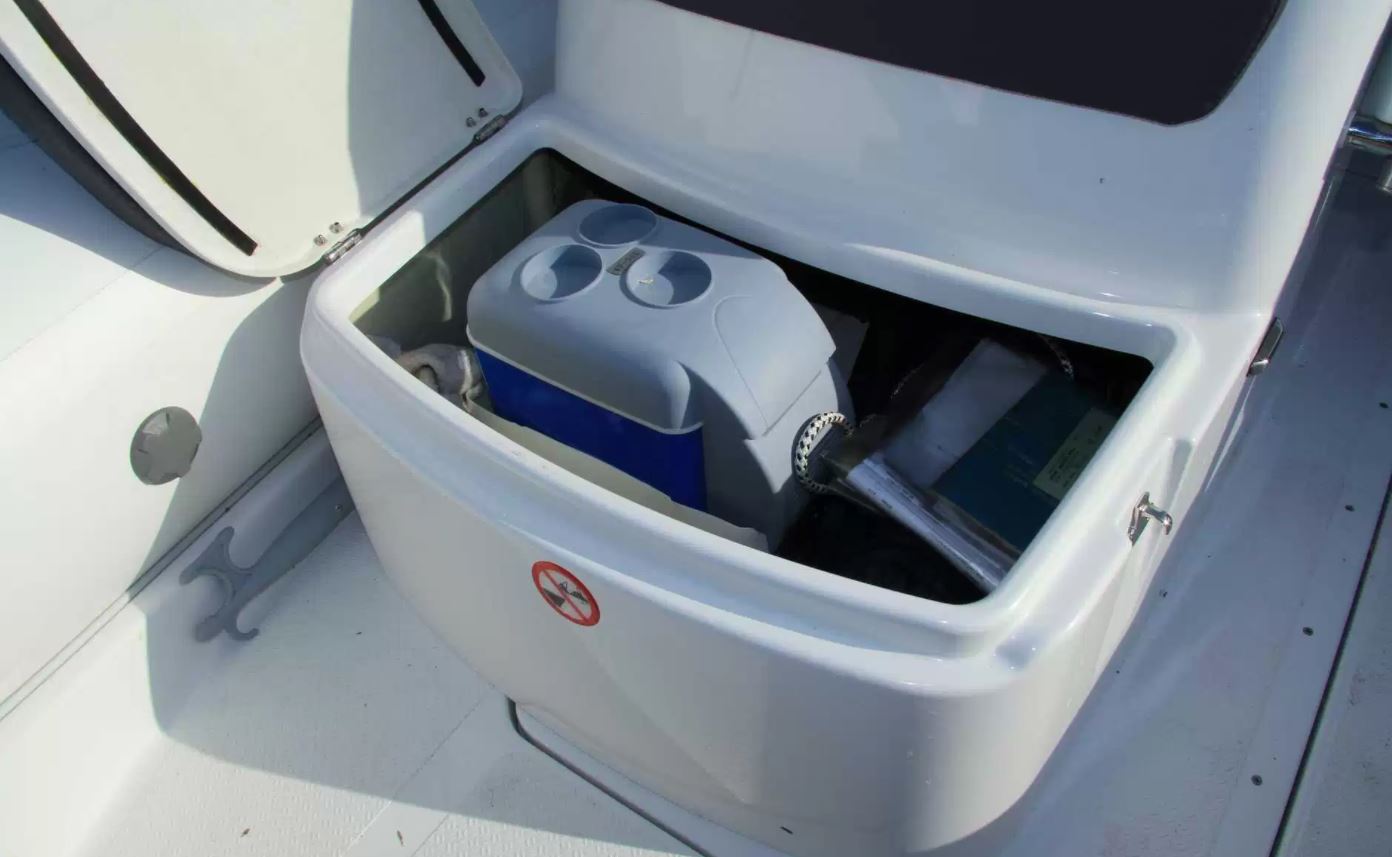

- Molded in bow locker with large access door and soft cushion

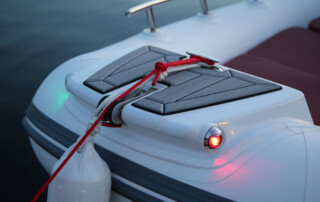

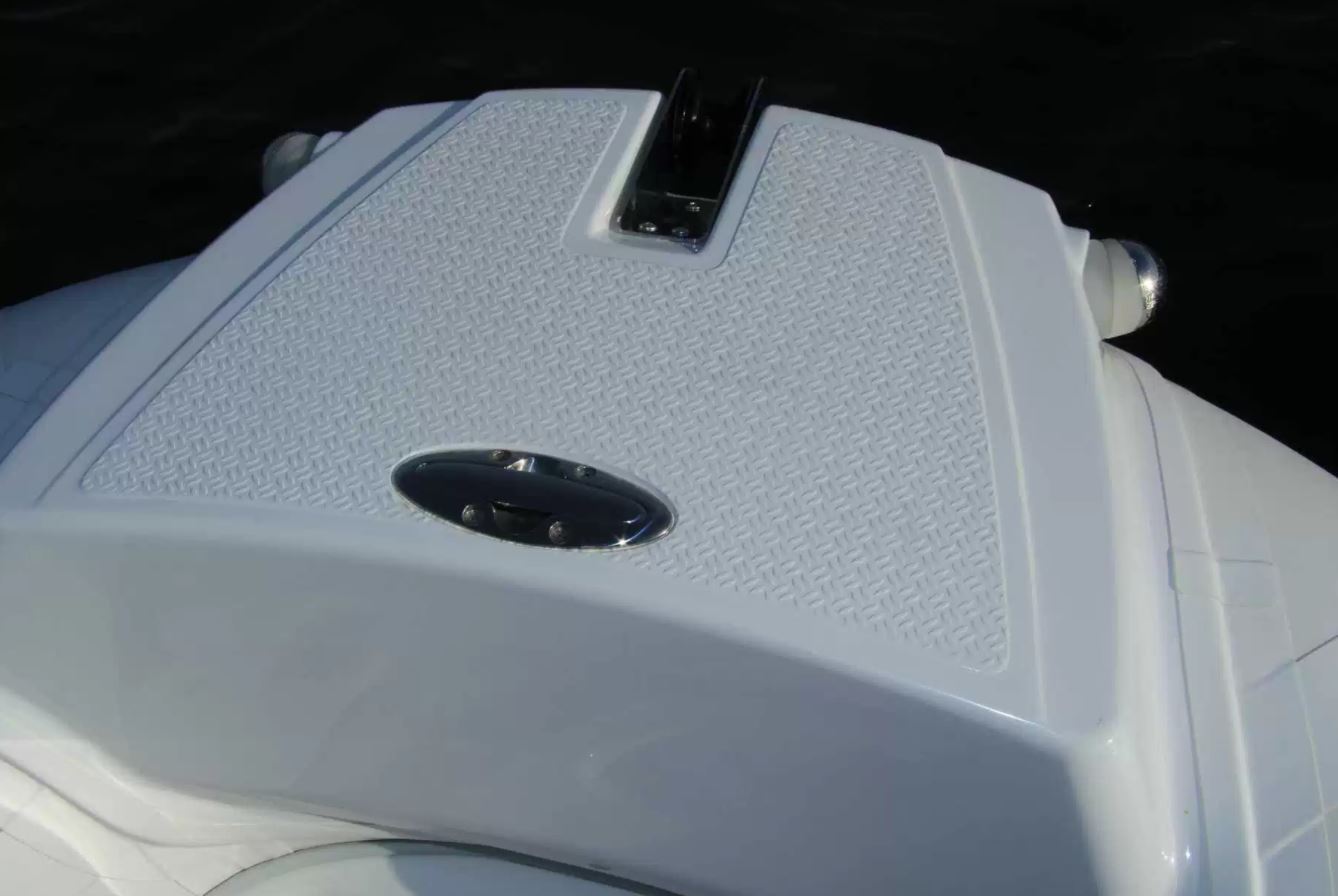

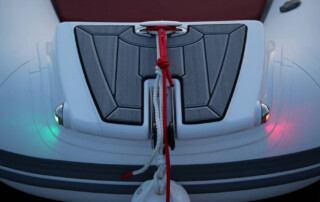

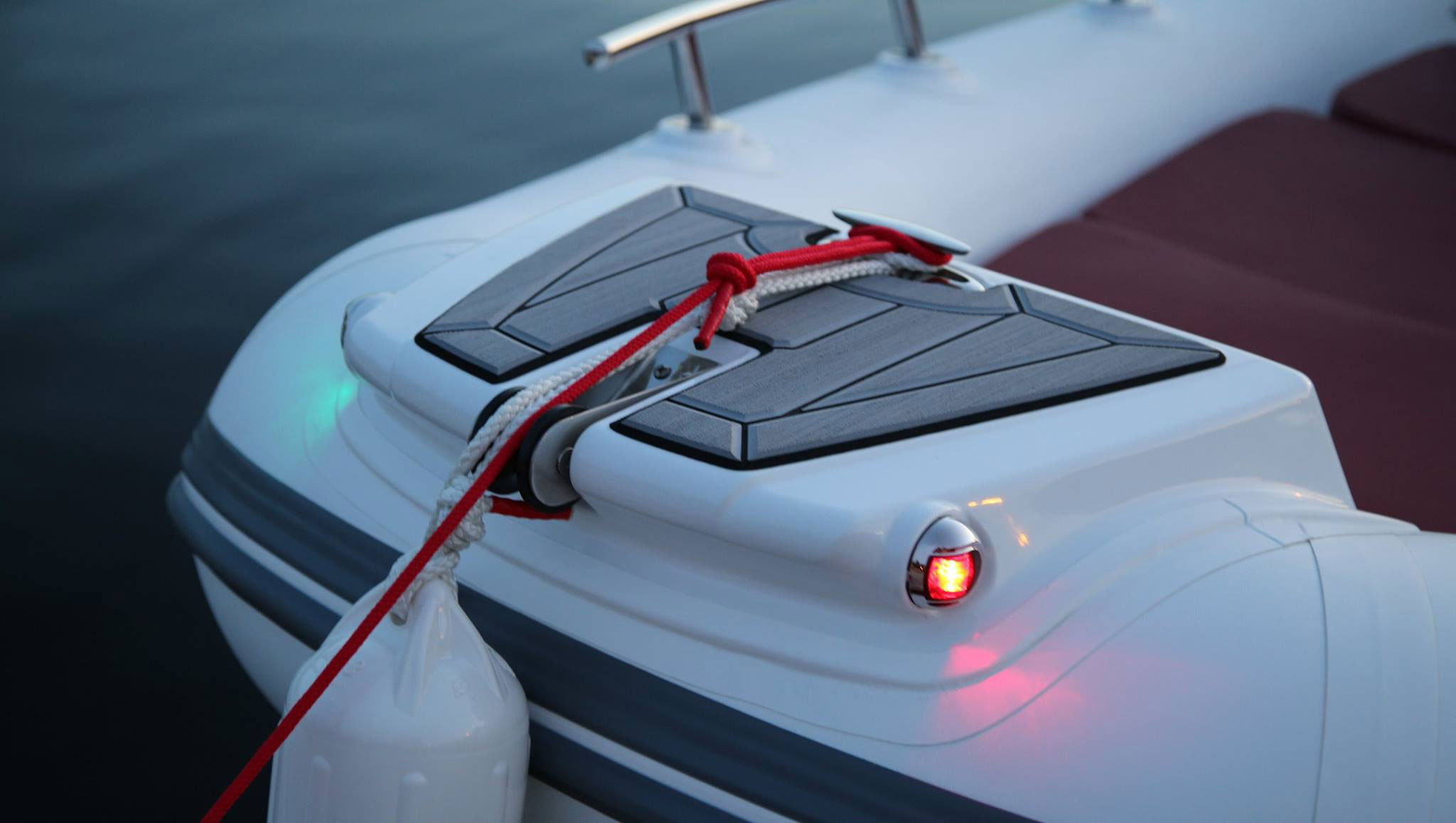

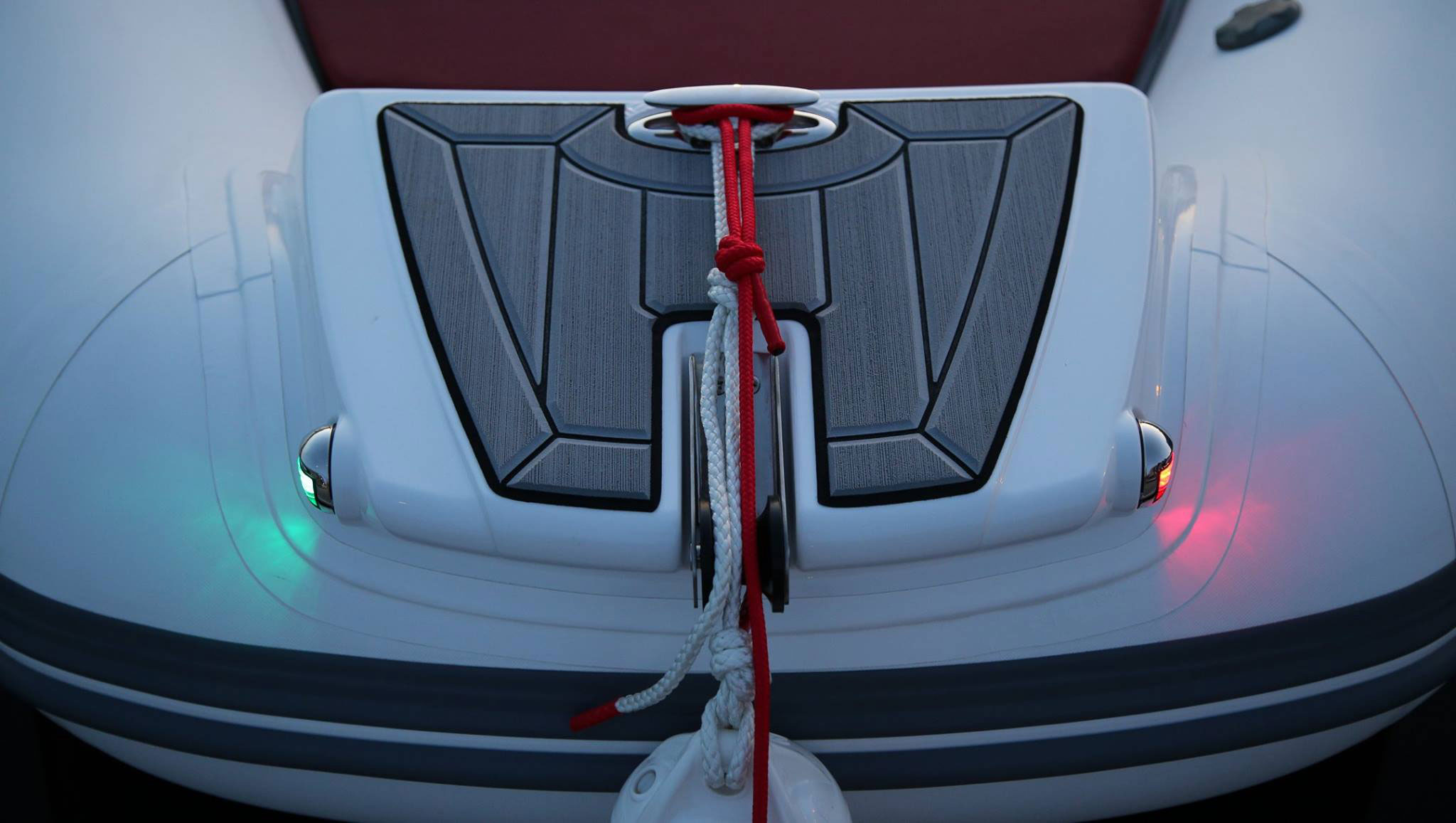

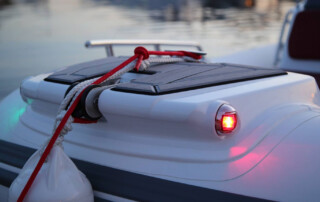

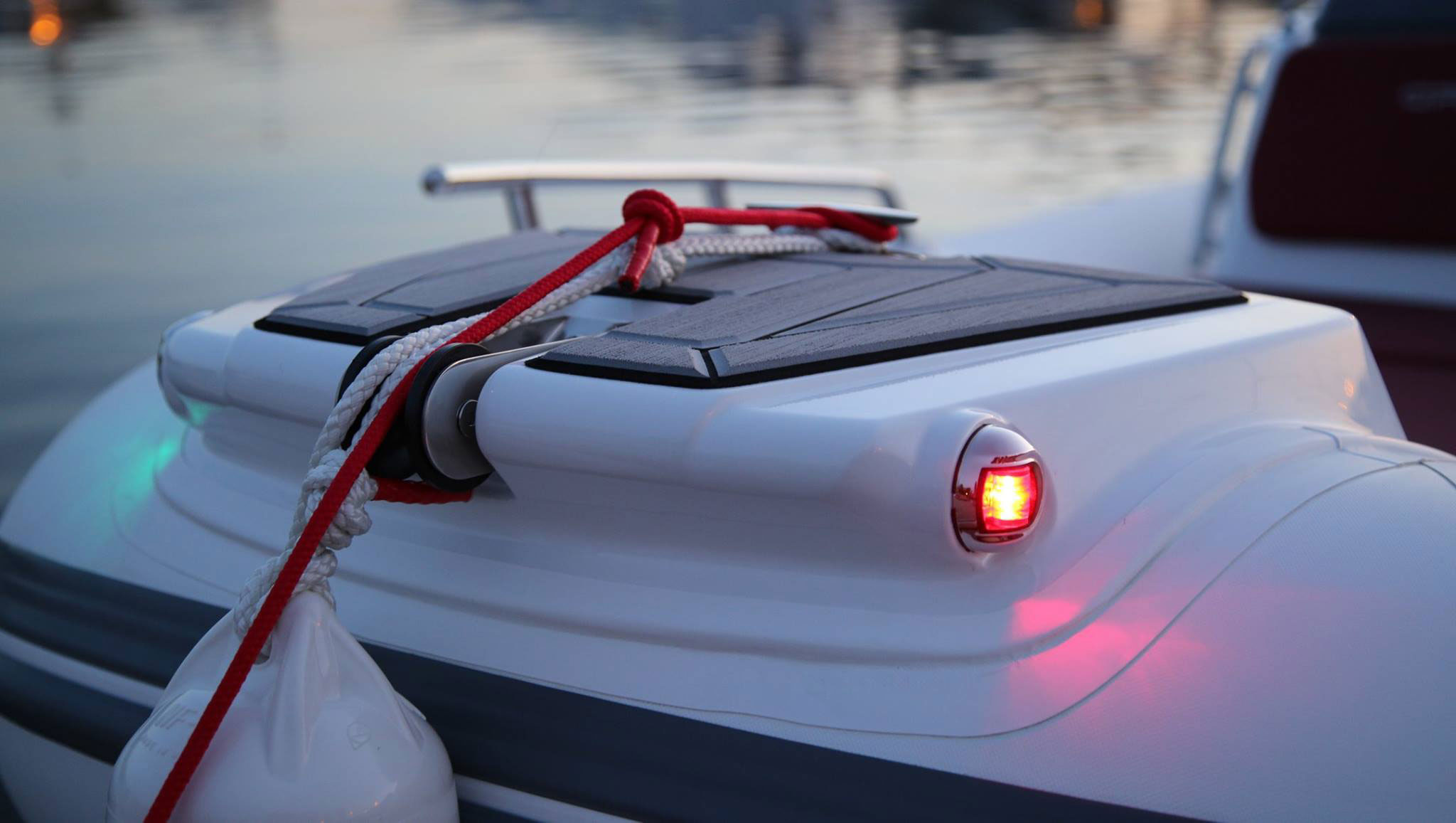

- Bow step plate with navigation lights, anchor roller and cleat
- 2 front stainless steel cup holders

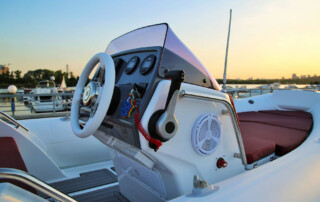

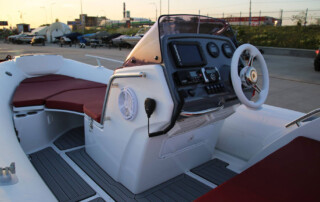

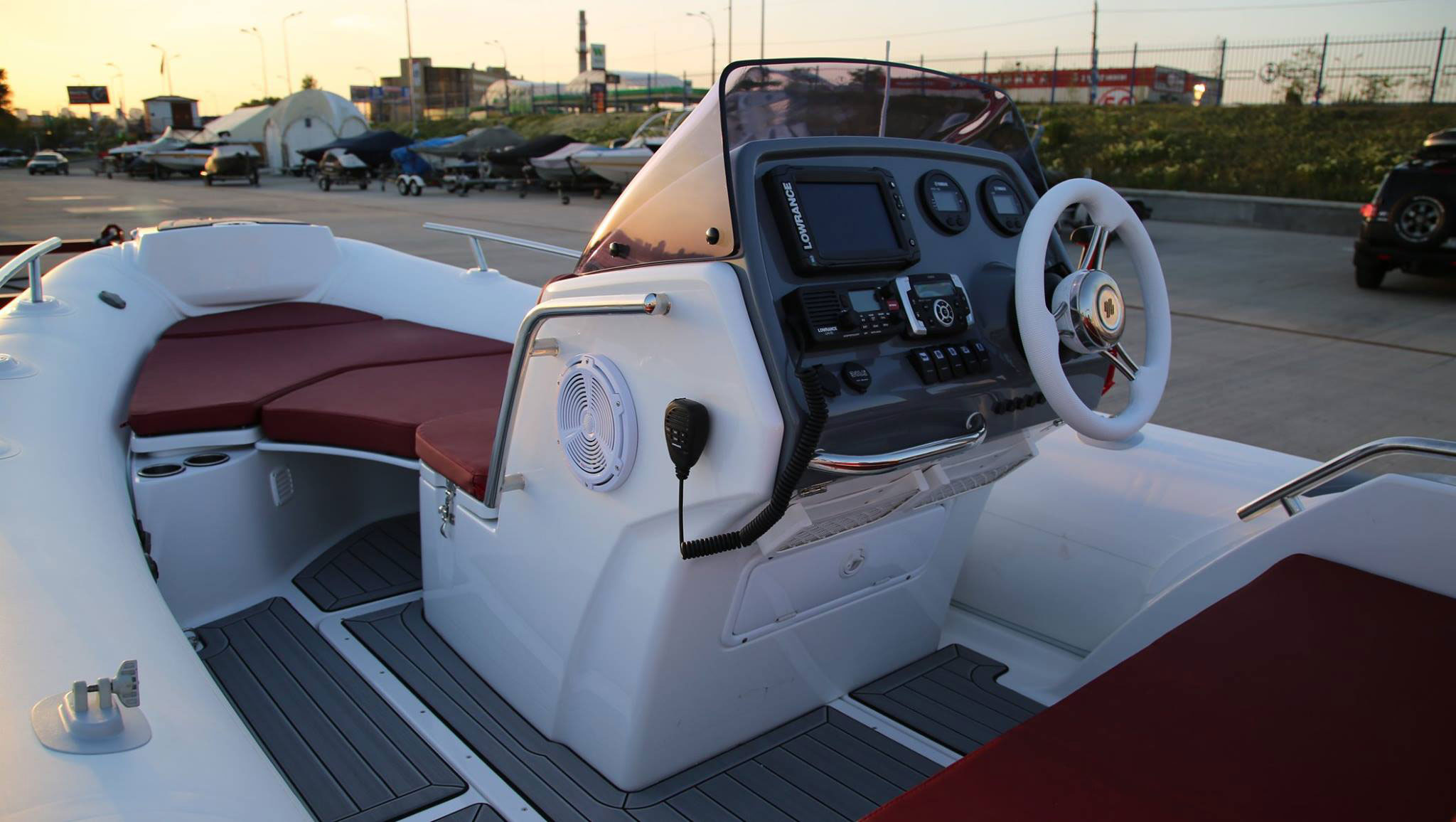

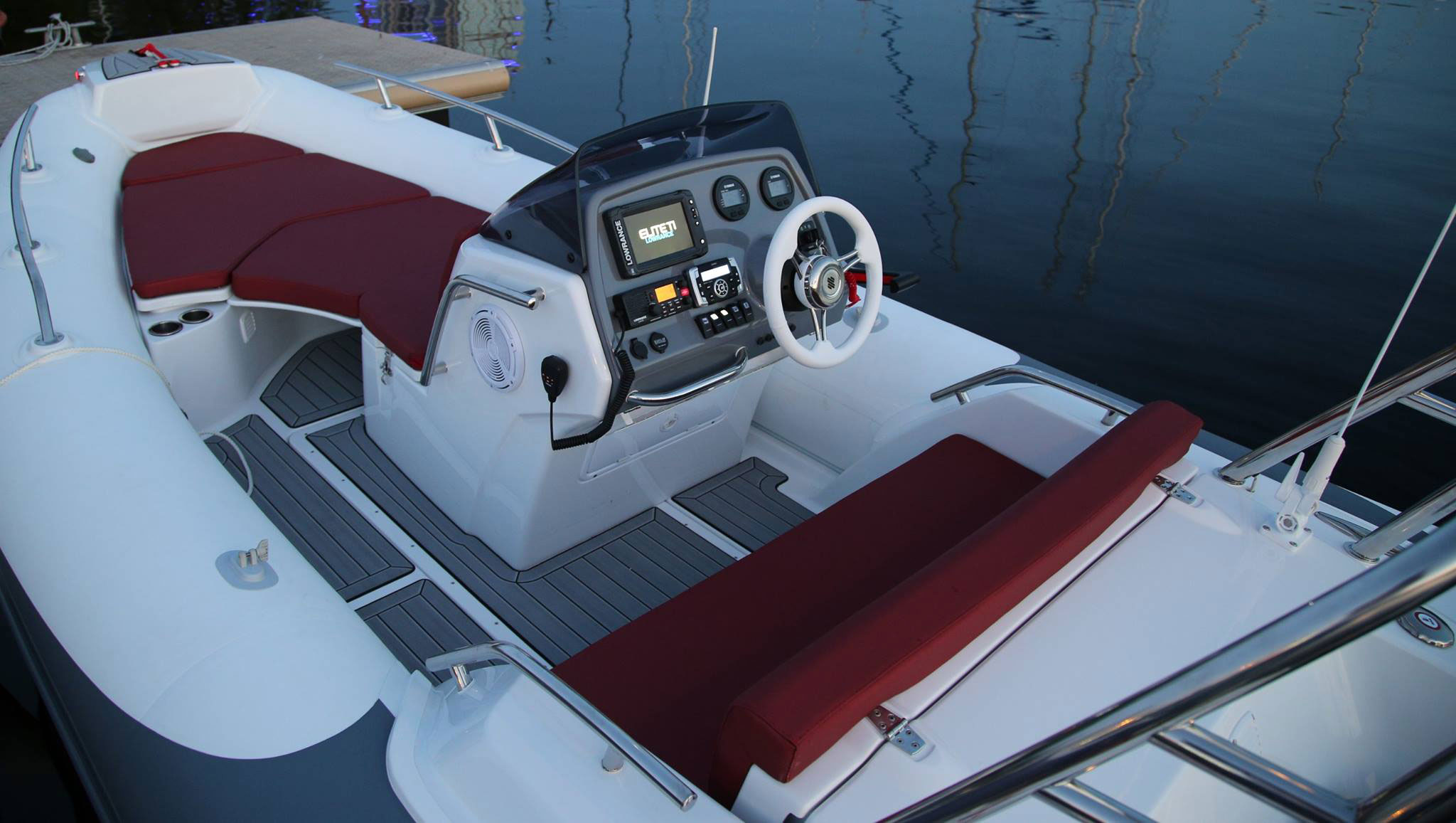

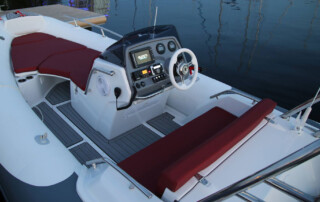

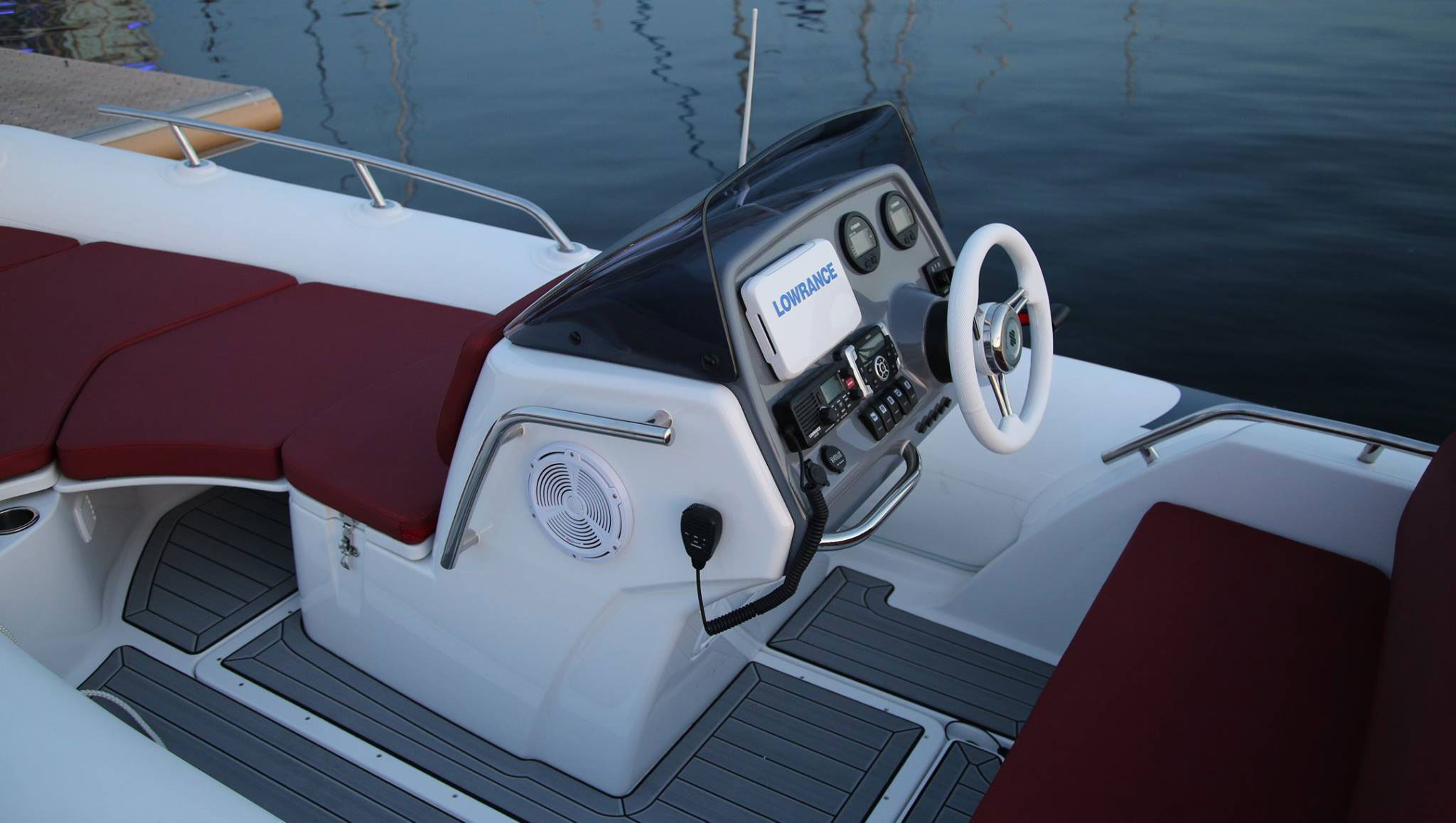

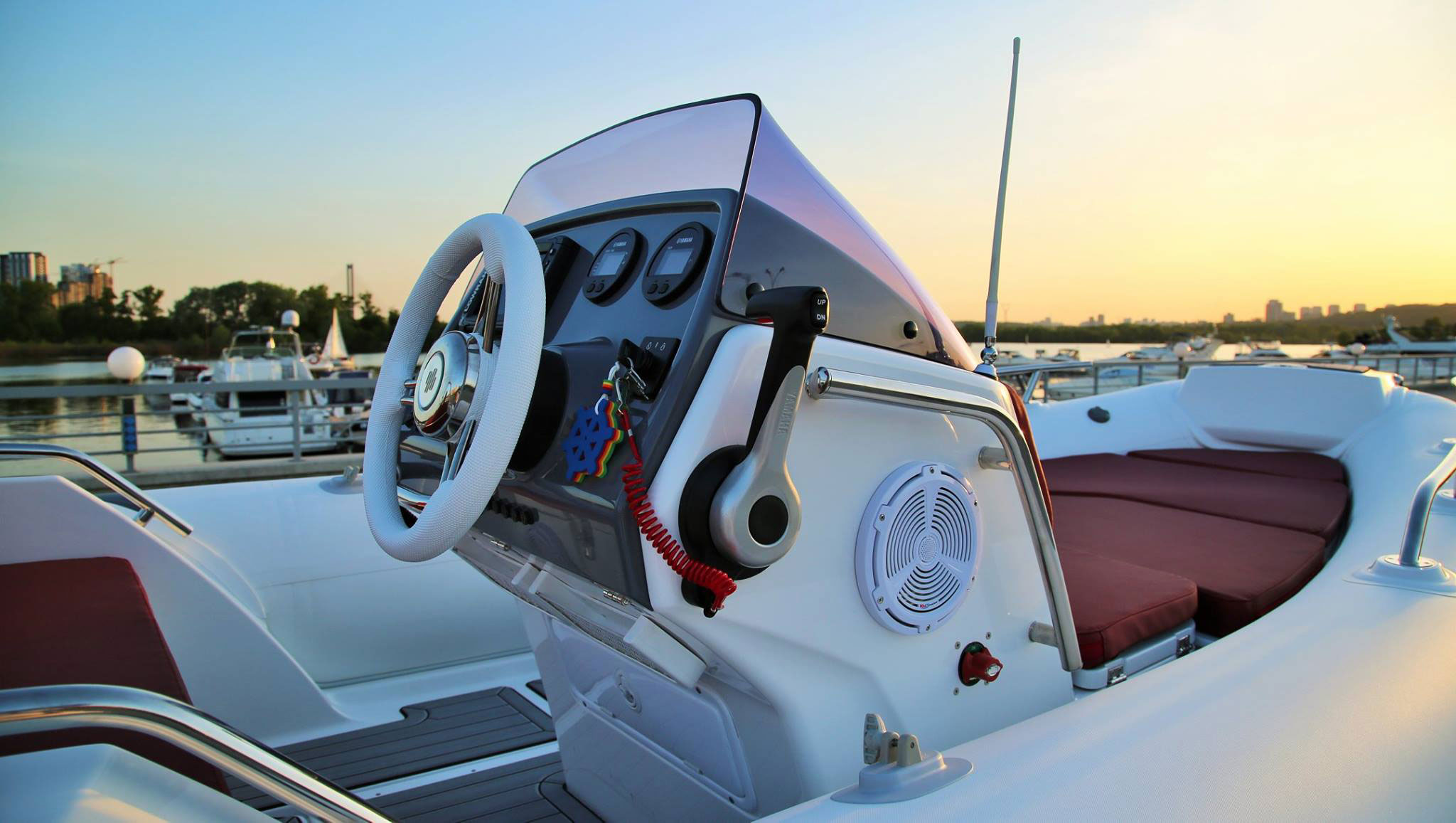

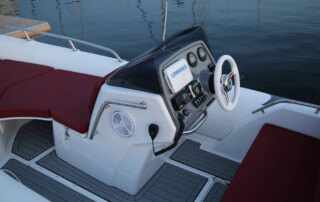

- Steering console CL-20 with front seat, windshield, railings, handle and glove box

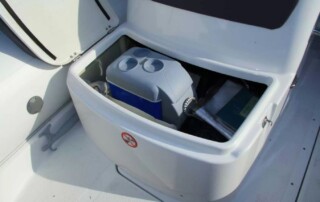

- Rear locker with access door, lifters, soft seat and seat back
- 2 rear pull up stainless steel cleats, 2 towing eyes
- Stainless steel rear railings
- 2 front and 3 rear lifting eyes
- Built-in fuel system with 90l fuel tank and sender
- Maintenance kit, pump, 2 paddles and manual
STANDARD FEATURES FOR GRAND LUXE VERSION (G500GLF):

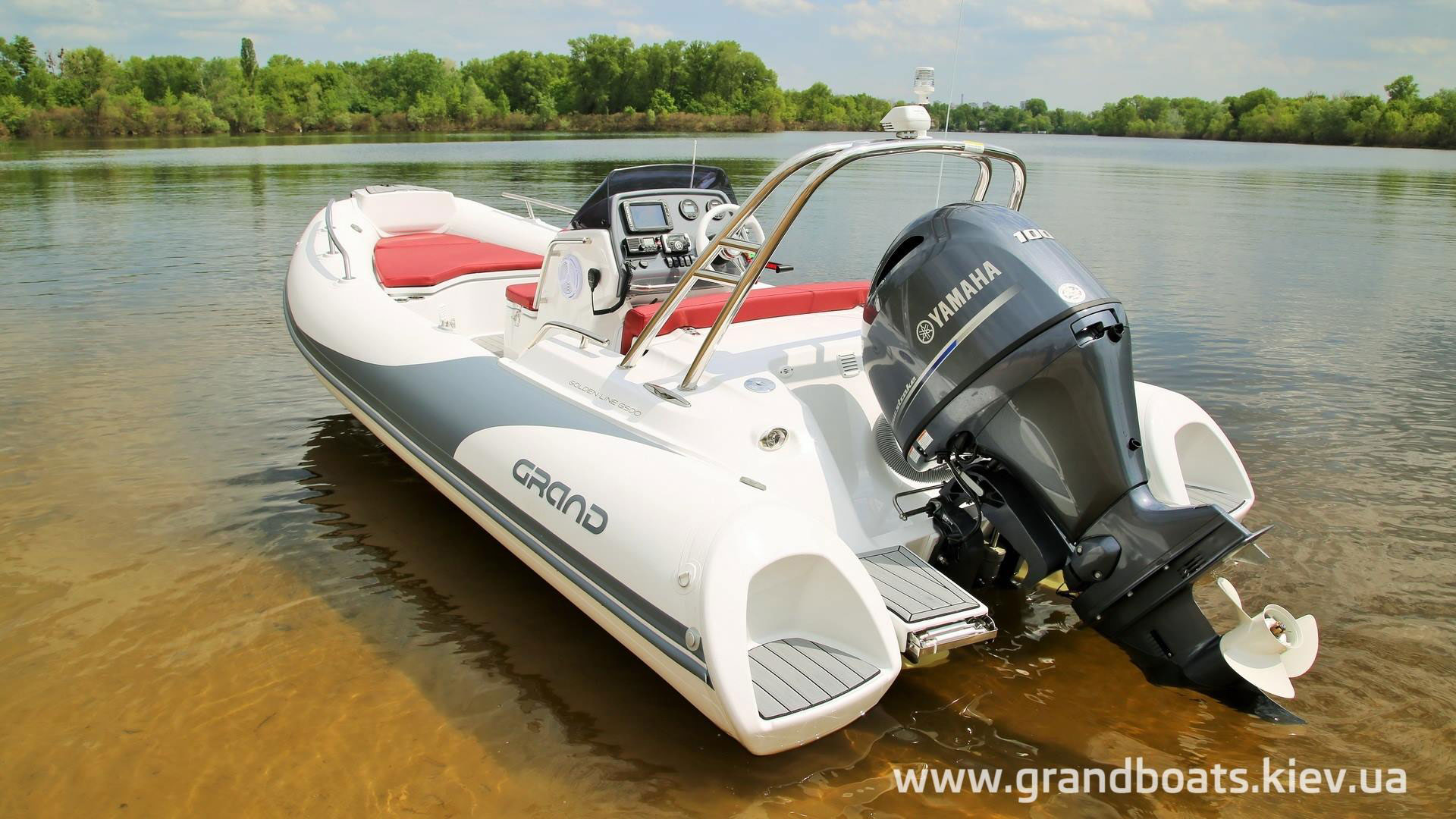

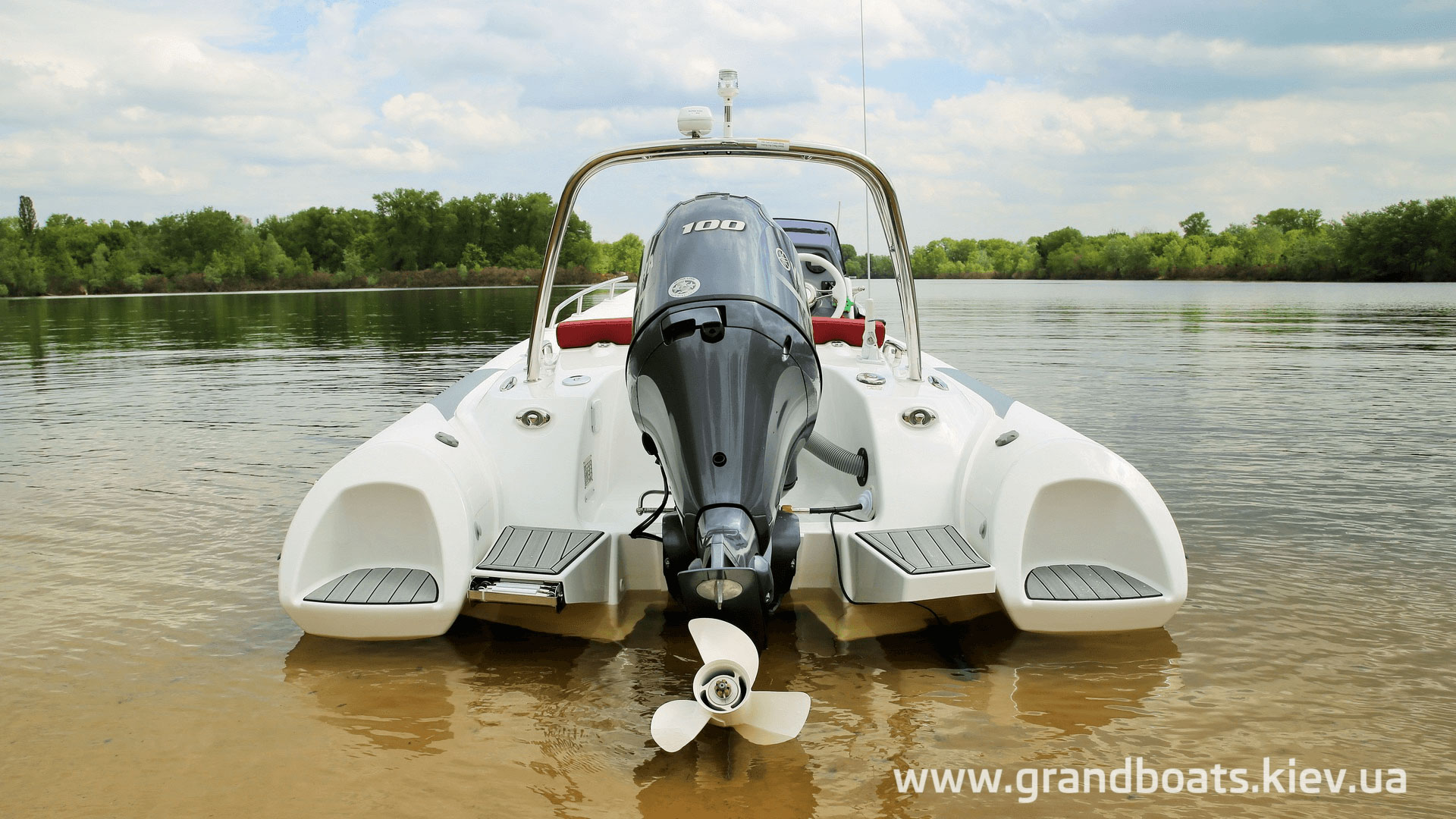

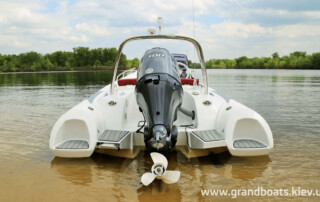

- Two swimming platforms with folding ladder
- Electric package with navigation lights, bilge pump, electric horn, switches, battery switch and complete wiring
- Stainless steel bow railing
OPTIONAL EQUIPMENT:
- Removable bow sundeck with cushion
- Keel and tube protector packages
- Stainless steel navigation/waterski towing arch
- Overall cover for boat, overall cover for console and rear seat

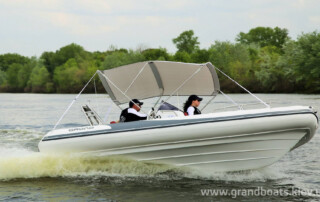

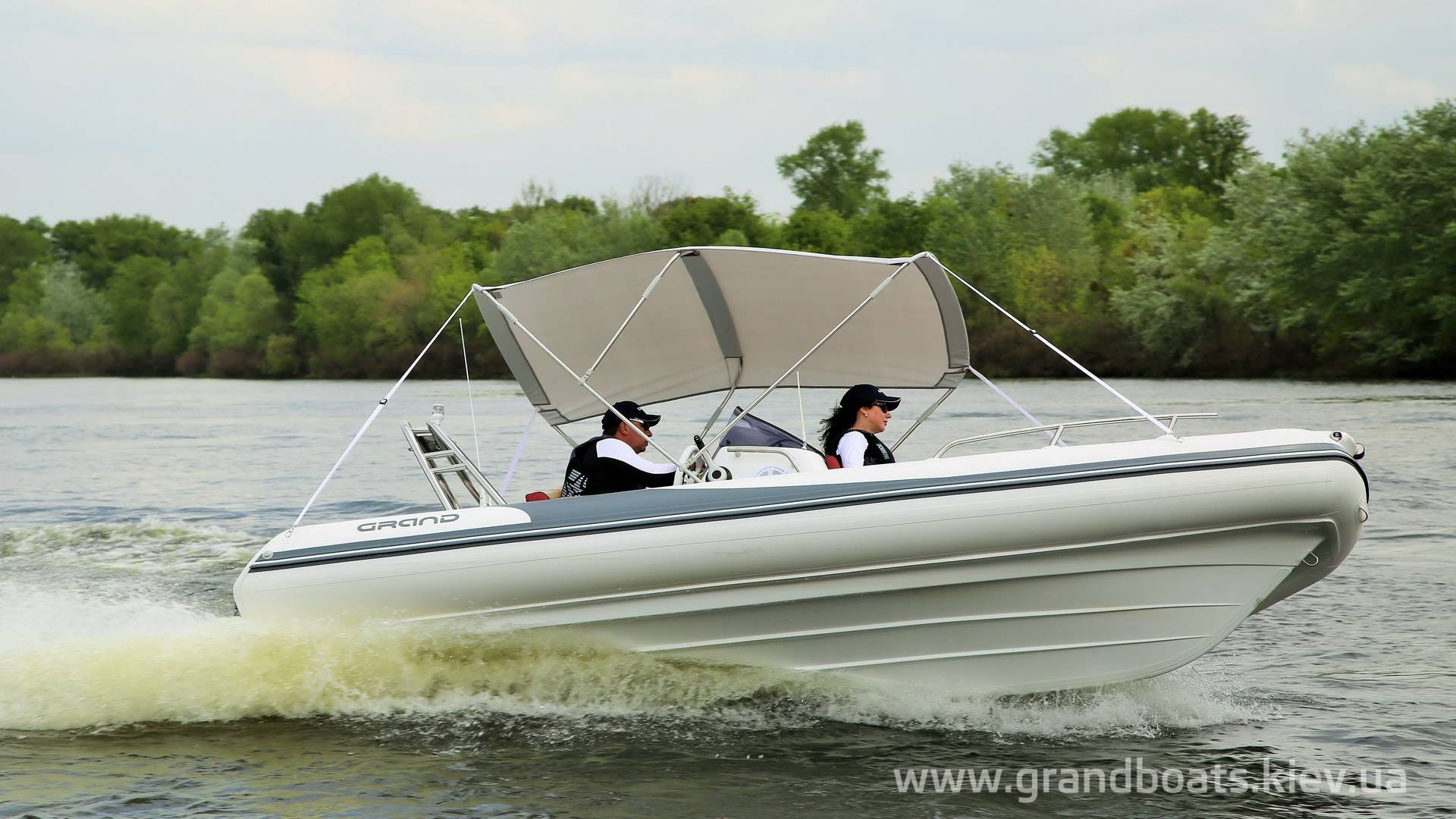

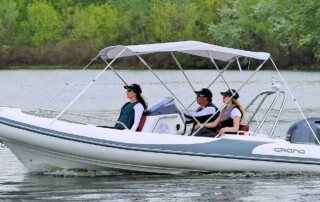

- Collapsible stainless steel bimini top
- SILVERTEX upholstery upgrade
- SEADECK antiskid flooring upgrade
- Custom gelcoat upgrade for the hull and tube step ends
Specifications
|
Models |
G500LF |
|---|---|
| Length overall | 16’3″ |
| Length inside | 10’1″ |
| Width overall | 7’7″ |
| Width inside | 4’2″ |
| Tube Diameter | 50 cm / 20″ |
| Bare boat weight | 435 kg / 957 lbs |
| Loading capacity | 1000 kg / 2200 lbs |
| Passenger capacity | 10 |
| Number of chambers | 5 |
| Engine recommended | 90 HP |
| Engine MAX | 115 HP |
| Engine weight MAX | 210 kg / 462 lbs |
| Engine shaft length | 20″ (long) |
| Boat design category | D,C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
LIGHT GRAY / GRAY
Light gray tube
with gray decor.
White hull.
(Default color)
WHITE / GRAY
White tube
with gray decor.
White hull.

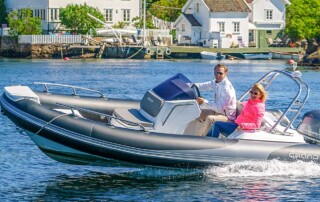

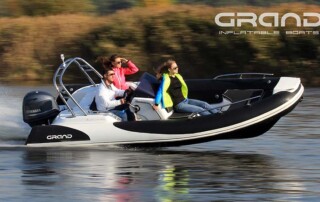

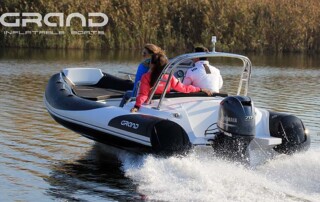

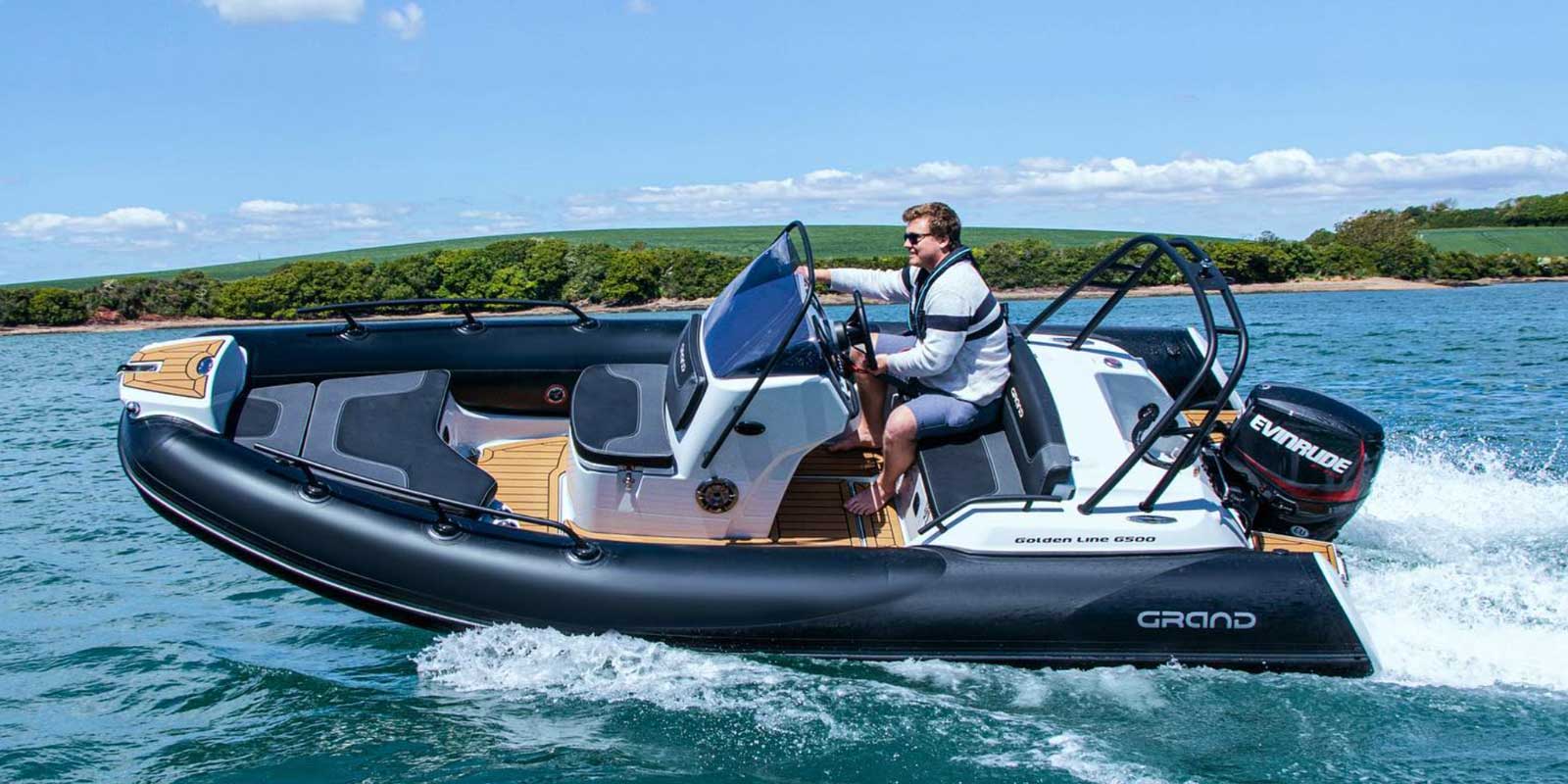

BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
